Technologies Behind bmf-tech

This post describes the technology stack supporting this blog (bmf-tech.com).

Previous bmf-tech Architecture

First, let's look at the architecture of the previous generation of bmf-tech.

  • The application was a monolithic architecture based on Laravel.
    • The API was built with PHP, and the admin panel was a React-based SPA.
      • These technologies were chosen somewhat arbitrarily at the time.
  • Hosted on Sakura VPS.
    • No configuration management tools (like Ansible) were used; middleware was installed and configured manually.
      • A "warm" setup.
  • No monitoring tools were in place.
    • Logs were checked by SSHing into the server directly.
  • Containers were not used.
    • It was the era when Vagrant was mainstream or trending.
  • Deployment was handled via Git hooks.

The previous application was the first custom CMS I built, called Rubel.

I don't remember exactly how long it was in operation, but probably around 3–5 years.

Before Rubel, I ran the blog using WordPress with custom themes.

The progression was: WordPress (custom theme 1) → WordPress (custom theme 2) → Rubel → the current system.

The domain for bmf-tech.com was registered on November 2, 2015. Based on the domain age, the blog has been running for nearly seven years.

Current bmf-tech Architecture

Now, let's discuss the current architecture of bmf-tech.

The same architecture is available as sample code in gobel-example.

Design

There were several reasons for wanting to replace the system:

  • I wanted an opportunity to explore new technologies.
    • At the time, I was mainly working with PHP and wanted to try other languages.
  • I lacked the motivation to maintain Rubel.
    • Laravel's update cycle was fast, requiring frequent updates.
      • I wanted to focus more on business logic rather than framework updates.
    • React felt overwhelming.
      • Redux was particularly challenging.
        • The scale didn't justify using FLUX.
    • I wanted a structure where the API could be separated, and the frontend could be easily discarded.
    • I wanted more control over the source code.
      • I felt uneasy about being overly dependent on frameworks.
    • Debugging system issues was difficult.
    • Etc.

Based on these reasons, I roughly outlined the design principles for the new system:

  • Build a system that is easy to maintain in the long term.
    • Server configuration management:
      • Properly implement IaC.
        • Ensure idempotency.
        • Make it easy to switch servers if needed.
    • Application design:
      • Minimize dependency on frameworks.
      • Limit dependencies to standard libraries or custom libraries, except for the frontend.
    • Set up a monitoring environment:
      • Enable monitoring of system metrics, logs, and alerts.

Architecture

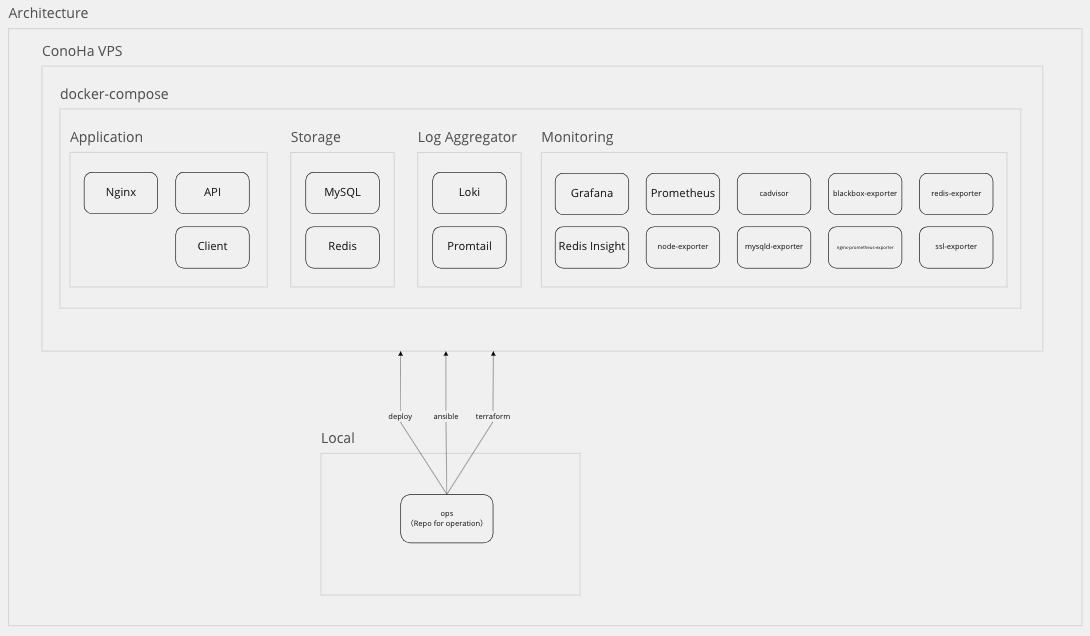

The architecture built based on the design principles is as follows:

スクリーンショット 2022-11-22 22 53 31

  • The server is hosted on ConoHa VPS instead of Sakura VPS.
    • Specs:
      • CPU: 2 cores
      • Memory: 1GB
      • SSD: 100GB
      • Image type: Ubuntu
    • ConoHa supports OpenStack, making it easier to manage instances with Terraform.
    • It's affordable and user-friendly.
  • Server configuration management is handled with Ansible.
  • SSL is provided by Let's Encrypt.
  • Docker is used for virtualization.
  • Nginx serves as the web server for the admin panel (SPA), API (headless CMS in Go), and client (user-facing interface in Go).
    • The Nginx image is customized with a multi-stage build to include the admin panel's pre-built source code.
    • The API and client are built as Go binaries and included in the image.
  • Monitoring is handled using Grafana as the UI.
    • Prometheus collects server metrics, while Promtail and Loki handle container log collection.
      • Grafana visualizes the collected data.
    • Initially, I used the EFK stack for log collection, but the 1GB server struggled with resource usage, so I switched to Loki and Promtail.
      • This setup is simpler and meets my requirements.

Deployment

Deployment is straightforward.

  • A private repository (bmf-tech) manages the container configuration.
    • gobel-example serves as the template.
      • While gobel-example uses the EFK stack, the private repository (bmf-tech) uses a Promtail × Loki setup.
    • The same container configuration can be run locally as in production.
    • Application source code is not included.
    • All environment variables are injected externally.
  • Deployment involves running a script that:
    • SSHs into the server.
    • Pulls the bmf-tech repository.
    • Uploads environment variable files via rsync.
    • Runs docker-compose build & up.
    • There is no version management.
    • This approach causes brief downtime, but given the current traffic, it's not a significant issue.
      • It does affect availability, though...
  • Initially, I tested deployment using Docker context but eventually abandoned it (I forgot why).

Source Code Management

The following diagram illustrates how source code is managed based on the container configuration:

NOTE - Source code management

  • bmf-tech:
    • A private repository based on gobel-example, managing the container configuration.
  • bmf-tech-ops:
    • A private repository based on gobel-ops-example, managing server configuration, deployment scripts, and other operational code.
  • bmf-tech-client:
    • A repository based on gobel-client-example, managing the frontend source code.
    • Images are pushed to DockerHub as public images.
  • gobel-api:
    • gobel-api:
    • Manages the headless CMS source code.
    • Images are pushed to DockerHub as public images.
  • gobel-admin-client:

Application Design

Details of the API, Client (user-facing interface), and Admin (admin panel) applications:

API

  • Built as a headless CMS API.
  • Developed using Go:
    • Simple language specifications, strong backward compatibility, fast compilation, portability with binaries, strong typing, and a rich standard library make it a good match for containers.
  • Implements Clean Architecture:
    • While opinions on the compatibility of Go and Clean Architecture vary, I decided to try it.
    • I believe adhering to "separation of concerns" in Clean Architecture helps maintain long-term application maintainability.
  • Minimal dependencies beyond standard packages.
  • Uses REST as the API protocol.
    • If I were building it now, I might consider gRPC.

Client

  • A web server that responds with pages.
  • Implements an API client in Go.
  • Embeds template files (HTML) into the binary.
  • Uses a custom CSS framework for design.

Admin

  • Admin panel.
  • Authentication uses JWT tokens.
  • Session management uses Redis.
  • Developed using Vue.js:
    • Chosen for its simplicity and ease of use compared to React.
      • I haven't used React recently, but I started using Vue more often and adopted it to gain experience.
    • Experimented with Atomic Design.
      • Not sure if it was implemented well.
    • Upgraded from Vue 2 to Vue 3 during development.
    • Considered introducing TypeScript but postponed it.
      • The admin panel is not expected to require frequent feature additions, so maintenance is assumed to be limited to library updates.
      • Considering the changing trends in frontend frameworks, I decided to keep it simple.
  • SPA is served via Nginx.

Database Design

The database design is mostly inherited from Rubel, but logical and physical deletions were reviewed and redesigned in some areas. Column data types and sizes were also reviewed.

Migration

Data migration was handled using a custom migration tool I developed: migrate-rubel-to-gobel.

Since there were no significant differences in database design, the migration tool was implemented in about 2–3 days.

Server migration involved setting up the new server environment, obtaining a test domain for verification, and conducting various checks. The release process was completed by simply switching DNS.

The old environment was deleted and the contract terminated after a month of stable operation in the new environment.

Monitoring

Monitoring dashboards and alerts were created and configured in Grafana.

The monitoring dashboards are managed as JSON files for provisioning, while alerts were initially configured via the Grafana UI. (Alert provisioning was not supported at the time cf. github.com - grafana/issues/36153 → Now supported and implemented provisioning for alerts.

SLI & SLO

Although the traffic is low, I wanted to set these up to monitor and ensure consistent availability. This is still a work in progress.

Load Testing

I am considering conducting load testing as a future task.

Summary of Created Tools

Here is a summary of the tools and resources created during the development of the new bmf-tech:

While creating these resources, I also wrote blog posts, gave lightning talks, and engaged in other activities, which significantly extended the time it took to release the new bmf-tech.

Future Plans

There were times when I paused development or considered switching to WordPress or another existing system, but I am relieved to have finally completed a functional system.

There are still many unresolved issues and things I want to do, which I plan to address gradually as a hobby.

Rather than just building something, I want to focus on how to build and operate systems effectively. I see this blog system as an investment in that learning process.

The reasons I run my own blog are primarily for learning:

  • For personal growth:
    • Writing articles helps organize my thoughts.
    • Building, hosting, and using my own blog system provides learning opportunities.
  • To gain experience in system construction and operation:
    • Operating a system where I have full control offers valuable learning experiences.
  • To earn a little extra money:
    • While living off ad revenue is a joke, it would be nice to cover server costs.
    • I don't focus on monetization, but in the past 1–2 years, I've managed to cover a portion of the annual operating costs, which makes me think this might be worthwhile in the long run.

For now, I plan to continue operating the current system at a relaxed pace.
