Overview

To seriously catch up with Kubernetes, I read the documentation and left my personal notes. Since it's long, I only took notes on the concepts section.

kubernetes.io

What is Kubernetes?

cf. What is Kubernetes?

What is Kubernetes?

• Declarative configuration management
• Promotion of automation
• A platform for managing containerized workloads and services

Looking Back

• Deployment before virtualization (Traditional deployment)
  • No resource limitations for applications on physical servers
    • Resource allocation issues
  • Difficult to scale
  • Maintenance costs
• Deployment using virtualization (Virtualized deployment)
  • Applications can be isolated per VM
    • Restriction on data access between applications
  • Improved resource utilization within physical servers through virtualization
  • Easy to add or update applications
    • Reduced hardware costs, improved scalability
• Deployment using containers (Container deployment)
  • OS can be shared between applications
    • Lightweight
  • Containers have their own filesystem, CPU, memory, process space, etc.
  • Independent of cloud or OS distribution
  • Benefits of containers
    • Easier and more efficient to create container images than VM images
    • Continuous build and deployment of container images
    • Separation of concerns between development and operations
      • Application container images are created during build and release
    • High observability
      • In addition to OS-level information and metrics, also includes application status and other alerts
    • Consistency across environments
      • Can be run the same way in development, testing, and production
    • Portability across cloud and OS distributions
      • Can be run in any environment, whether on-premises or public cloud
    • Application-centric management
      • From running OS on virtual machines to running applications using logical resources on OS
    • High affinity with microservices
      • Compatible with loosely coupled, distributed, scalable, and flexible microservices
    • Resource partitioning
      • Predictable application performance
    • Efficient use and aggregation of resources

Why Kubernetes is Needed and Its Features

• Service discovery and load balancing
  • Containers can be exposed using DNS names or IP addresses
  • Network traffic can be distributed
• Storage orchestration
  • Freedom to choose storage to mount
• Automated rollouts and rollbacks
  • Can define the state of containers to be deployed
• Automatic bin packing
  • Can declare CPU and memory (RAM) required by containers
  • Can adjust according to nodes, efficiently utilizing resources
• Self-healing
  • Can restart, replace, or terminate containers that fail to start
• Secrets and configuration management
  • Can update application configuration without recreating container images

What Kubernetes Does Not Include

• Kubernetes does not...
  • Limit the types of applications it supports
  • Deploy source code or build applications
  • Provide built-in application-level (middleware, databases, caches, etc.) features
  • Specify logging, monitoring, or alerting features
  • Provide a configuration language
  • Provide or adopt systems for machine configuration, maintenance, management, or self-healing
  • Assume orchestration

Kubernetes Components

cf. Kubernetes Components

• Deploying Kubernetes results in a cluster
  • A cluster is a set of nodes that run containerized applications
    • Every cluster has at least one worker node
  • Worker nodes host Pods, which are components of applications
  • Master nodes manage worker nodes and Pods within the cluster
    • Using multiple master nodes provides failover and high availability to the cluster
  • The control plane manages worker nodes and Pods within the cluster
    • In production environments, multiple nodes can be used to provide fault tolerance and high availability

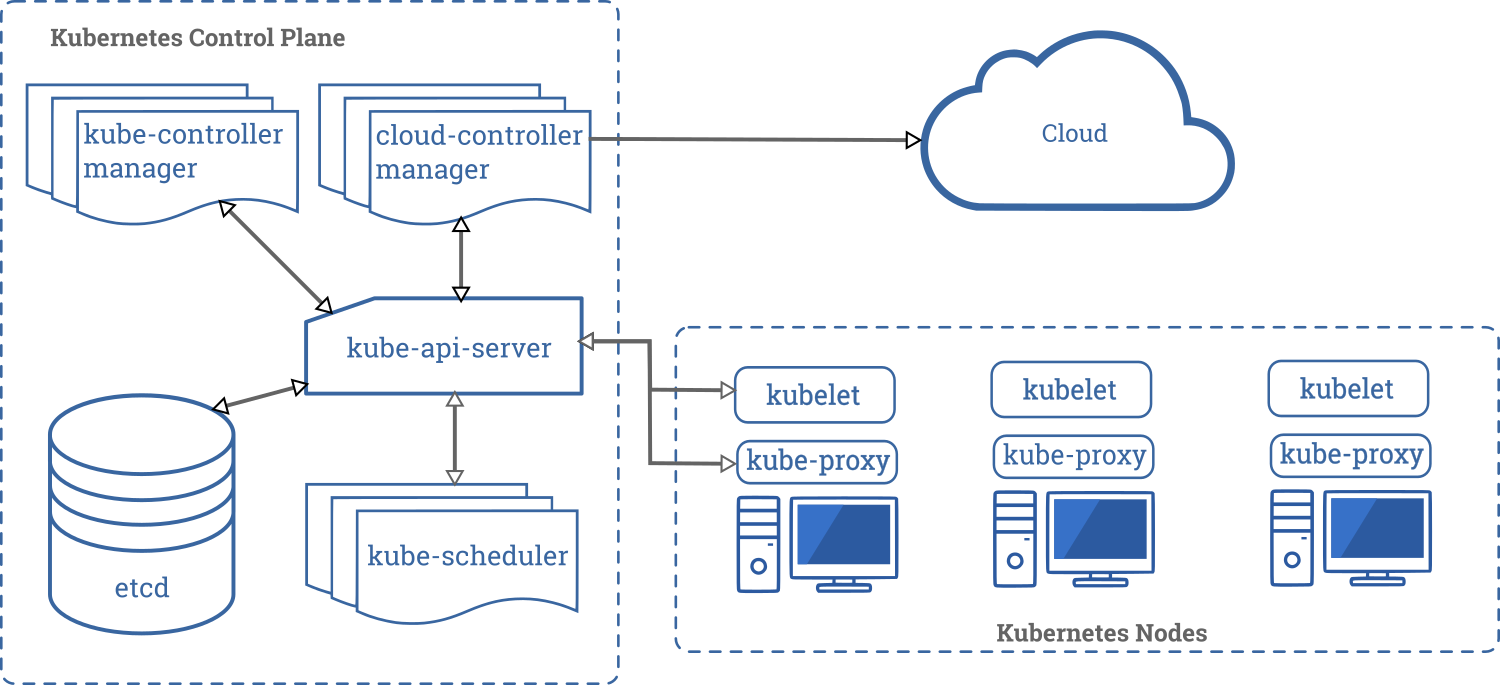

  • Diagram of a Kubernetes Cluster

Control Plane Components

• Makes overall decisions about the cluster (e.g., scheduling)

kube-apiserver

• Component that exposes the Kubernetes API externally
• Designed to scale horizontally

etcd

• Consistent, highly available key-value store
• Stores all cluster information for Kubernetes
• When using etcd as a data store for Kubernetes, always create a backup plan

kube-scheduler

• Monitors newly created Pods that have no node assigned, and selects a node for them to run on

kube-controller-manager

• Runs multiple controller processes
• Operates as a single process
  • Logically, each controller is compiled into a single executable file
• Includes the following controllers:
  • Node Controller
    • Notifies and responds when nodes go down
  • Replication Controller
    • Maintains the correct number of Pods for all replication controller objects
  • Endpoint Controller
    • Links Services and Pods
  • Service Account and Token Controller
    • Creates default accounts and API access tokens for new namespaces

cloud-controller-manager

• Runs controllers that interact with the underlying cloud provider
• The following controllers have dependencies on the cloud provider:
  • Node Controller
    • Checks with the cloud provider to determine if a node has been deleted after it stops responding
  • Routing Controller
    • Sets up routing in the underlying cloud infrastructure
  • Service Controller
    • Creates, updates, and deletes cloud provider load balancers
  • Volume Controller
    • Creates, attaches, mounts volumes, and coordinates with the cloud provider

Node Components

• Provides the runtime environment for managing Pods on all nodes

kubelet

• Agent that runs on each node in the cluster
• Ensures that containers are running in a Pod

kube-proxy

• Network proxy that runs on each node in the cluster, implementing part of the Kubernetes Service concept

Container Runtime

• Software responsible for running containers
• ex. Docker, containerd, CRI-O etc...

Add-ons

• Uses Kubernetes resources (DaemonSet, Deployment, etc.) to implement cluster features
• Provides cluster-level features
  • Add-ons that require namespaces belong to the kube-system namespace
• Some add-ons include:
  • DNS
  • Web UI
  • Container Resource Monitoring
  • Cluster-level Logging

Kubernetes API

cf. Kubernetes API

• Refer to API Reference

About Kubernetes Objects

cf. About Kubernetes Objects

Object spec and status

• Kubernetes objects have two nested object fields that manage the object's configuration
  • spec
    • Describes the desired state and characteristics of the object
  • status
    • Indicates the current state of the object

Kubernetes Object Management

cf. Kubernetes Object Management

Management Methods

• Imperative Commands
  • Targets existing objects
  • Recommended for development project environments
• Imperative Object Configuration
  • Targets individual files
  • Recommended for production project environments
• Declarative Object Configuration
  • Targets directories of files
  • Recommended for production project environments

Imperative Commands

• Users perform operations on existing objects in the cluster

Imperative Object Configuration

• Specify the operation, optional flags, and one or more filenames with the kubectl command

Declarative Object Configuration

• Users operate on configuration files located locally
• Operations are not recorded in the files

Object Names and IDs

cf. Object Names and IDs

Namespace

cf. Namespace

• Supports running multiple virtual clusters on the same physical cluster
  • These virtual clusters are called Namespaces

Nodes

cf. Nodes

• Worker machines
• A node can be a VM or a physical machine, depending on the cluster
• Each node includes services necessary to run Pods and is managed by master components

Pod Overview

cf. Pod Overview

• The smallest deployable unit in the Kubernetes object model

Understanding Pods

• Pods are the basic execution units of Kubernetes applications
• Encapsulate application containers, storage resources, unique network IPs, and options for managing container execution

ReplicaSet

cf. ReplicaSet

• Aims to maintain a stable set of replica Pods at all times

When to Use ReplicaSet

• Ensures that a specified number of Pod replicas are running at all times

Deployment

cf. Deployment

• Provides declarative updates for Pods and ReplicaSets

StatefulSet

cf. StatefulSet

• A workload API for managing stateful applications
• Manages scaling of a set of Pods and ensures order and uniqueness

DaemonSet

cf. DaemonSet

• Ensures that all (or some) nodes run a copy of a Pod

Job

cf. Job

• Creates one or more Pods and ensures that a specified number of them terminate successfully
• Tracks successful completion of Pods

Service

cf. Service

• An abstract way to expose an application running on a set of Pods as a network service

Motivation for Using Service

• Pods are designed to be ephemeral, and when they are created and stopped, they are not recreated
  • Using Deployment for application operation allows dynamic creation and deletion of Pods
• Each Pod has its own IP address

Service Resources

• In Kubernetes, a Service defines a logical set of Pods and a policy for accessing them

Service Exposure (Service Types)

• ClusterIP
  • Exposes the Service on a cluster-internal IP
• NodePort
  • Exposes the Service on a static port on each Node's IP
• LoadBalancer
  • Uses a cloud provider's load balancer to expose the Service externally
• ExternalName
  • Maps the Service to the contents specified in the externalName field by returning a CNAME record

Configuration

cf. Configuration

Best Practices for Configuration

• General configuration tips
  • Use the latest stable API version
  • Configuration files should be stored in a version control system
  • Use YAML instead of JSON. While compatibility is similar, YAML is more user-friendly.
  • Group related objects into a single file when meaningful
  • Remember that many kubectl commands can be called on directories
  • Avoid specifying default values unnecessarily. Simplicity and minimalism reduce errors.
  • Add annotations to describe objects

ConfigMap

• An API object used to store non-confidential data in key-value pairs.
  • ConfigMap does not provide confidentiality or encryption. Use Secret for sensitive data or additional third-party tools.
• Pods can use ConfigMap as environment variables, command-line arguments, or configuration files within volumes

Secrets

• Allows storage and management of sensitive information like passwords, OAuth tokens, and SSH keys
• Can be included in Pod definitions or images

Security

cf. https://kubernetes.io/ja/docs/concepts/security/

Overview of Cloud Native Security

The 4Cs of Cloud Native Security

• Security can be thought of in layers.
• The 4Cs of Cloud Native
  • Cloud
  • Cluster
  • Container
  • Code

Infrastructure Security

• Concerns related to Kubernetes infrastructure
  • Network access to the API Server (control plane)
  • Network access to Nodes
  • Access to cloud provider APIs from Kubernetes
  • Access to etcd
  • Encryption of etcd

Components Within the Cluster (Applications)

• Concerns related to workload security
  • RBAC authorization (access to Kubernetes API)
• Authentication
• Secret management for applications (and encryption when stored in etcd)
• PodSecurityPolicy
• Quality of Service (and cluster resource management)
• NetworkPolicy
• TLS for Kubernetes Ingress

Containers

• Concerns related to containers
  • Vulnerability scanning and OS-dependent security
  • Image signing and enforcement
  • Do not allow privileged users

Code

• Concerns related to code
  • Access only via TLS
  • Restrict communication port ranges
  • Security dependencies on third parties
  • Static code analysis
  • Dynamic probing attacks

Impressions

The notes are quite abbreviated. It took a fair amount of time to read through the documentation...

References

While progressing through the Kubernetes documentation, I also looked at external materials that were helpful.

• slideshare.net - Understanding Kubernetes: Learn the Internal Structure and Architecture
• qiita.com - Kubernetes Dojo Advent Calendar 2018
• qiita.com - Introduction Hands-on for Kubernetes Beginners
• qiita.com - Fully Understand in a Few Hours! A Rather Intense Kubernetes Hands-on!!
• www.netone.co.jp - Introduction to Kubernetes Networking
• www.slideshare.net - "About Kubernetes" in About 30 Minutes
• cloud.google.com - Network Overview
